Description

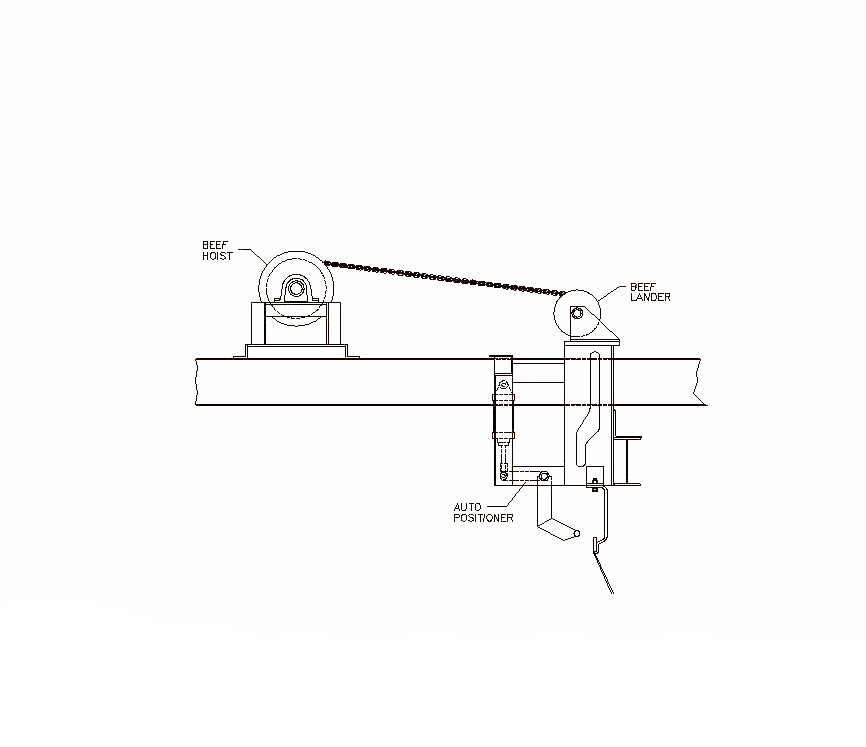

A separate unit that is used with the Drum Hoist No. 1005-29 through 36 or with any direct driven electric hoist.

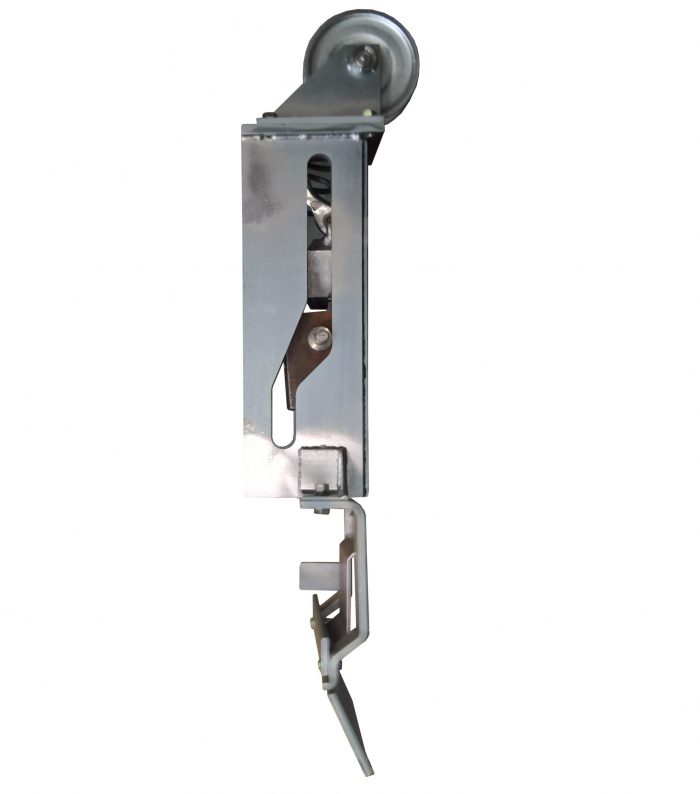

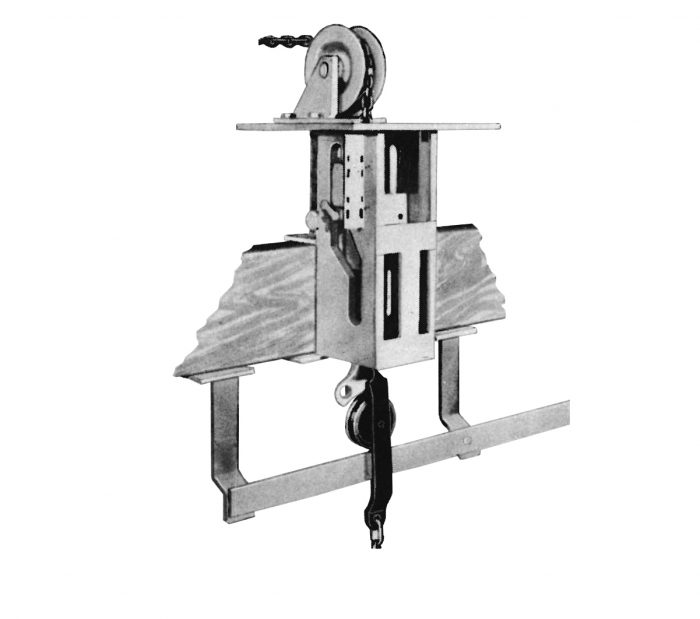

The use of the lander assures complete automatic quick and accurate landing of shackled animals on a bleeding rail. As the shackle is hoisted past the rail, the lander hooks move in, locating the shackle wheel in landing position above the rail with the limit switch stopping the motor at this point. When the hoist is reversed, the shackle wheel is landed on the rail, while the lander hook kicks out of the shackle frame and returns to the pickup level. This lander can easily be mounted on steel beams and will operate with any size hangers. 12″ x 14″ x 51″, 215 lbs.
